Why do you need an alternator regulator?
An alternator regulator adjusts the output of the alternator to the proper voltage required by the batteries based on battery chemistry & environmental factors. All lithium & some AGM applications require special programming of the alternator regulator. OPE provides comprehensive hardware programming services.
Replace your generator with a high output alternator and advanced regulator
Today’s high power alternators provide the option of supplementing and in many cases replacing generator charging. The AP500 has exclusive programming capabilities accessible with an Android app which allow the battery charging to be maximized based on engine RPM & real time loading data. Generate high amperage even at idle.
Temperature sensing
The regulator will adjust charging based on alternator temperature as well as battery temperature for non-lithium installations. It is important to have properly mounted temperature sensors to enable the charging to be scaled back in the case of high alternator temperature and to adjust the V for lead battery temperature variations.
Important Note: High-output alternators and advanced regulators can be challenging to install, and may require custom work to ensure proper fitment. An experienced installer is highly recommended for installation and configuration due to the potential complexity of the project. We will do everything we can to ensure a successful installation in the sales process, and will provide installation guides and manuals for our products. Additional support for installation, configuration, diagramming, and programming is available from OPE on a contracted hourly basis.
Wakespeed
WS500-Pro
- All the features of the WS500 & AP500 below with Bluetooth capability for programming
Wakespeed 500
- Utilizes both current & V to regulate charging
- Compatible with 12V, 24V, 48V systems
- CAN enabled for communications with engine & battery BMS – compatible with Victron, Lithionics, and others.
- Adjusts charging based on RPM with a completely customizable loading curve
- Wiring harness sold separately
- Programmable with the Bluetooth (WS500-Pro), Wakespeed app via Android, and the PredictWind Hub and OPE Tether.
Differences Between AP500 & WS500
- AP500 has no dip switches for preprogrammed charge profiles
- AP500 is more water resistant
- WS500 has RJ45 terminals
Revatek
Altion and Altion Max

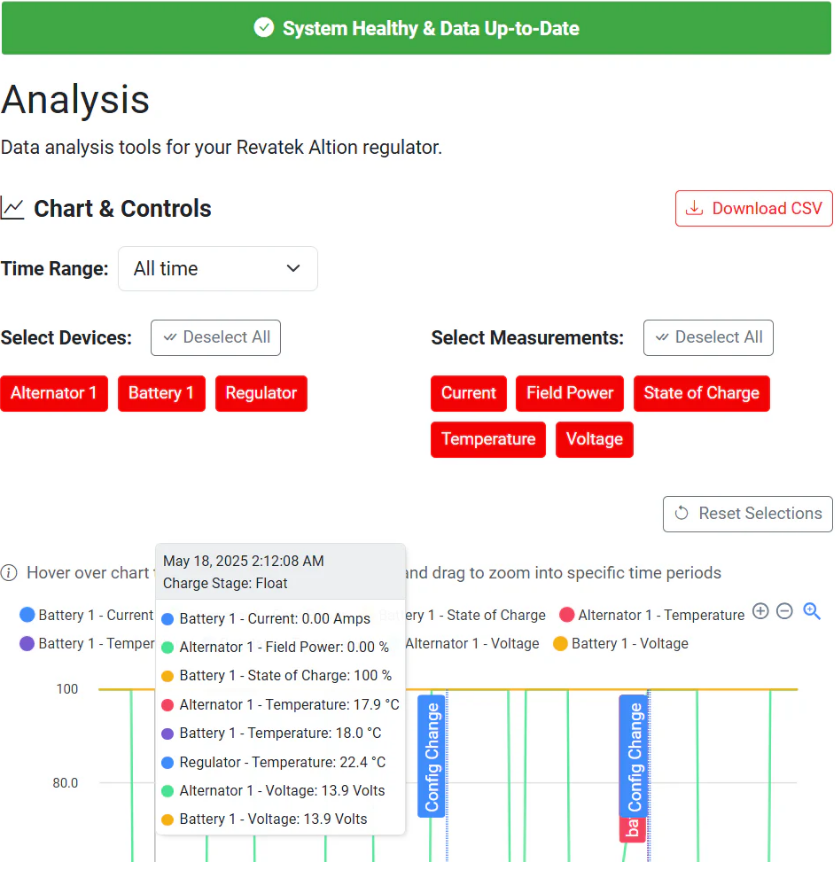

- Web-based programming, monitoring, and analysis interface makes configuration and tracking changes easy
- Utilizes both current & V to regulate charging
- Compatible with 12V, 24V, and 48V systems
- CANbus enabled for communications with battery BMSs, engines, and monitoring devices – integration with Victron, Lithionics, and others.
- Capable of controlling 2 alternators, charging 2 different battery banks, even with differing voltage.
- Comes complete with regulator, harness, and CANbus adapters (NMEA2000, Victron VE.Can, RV-C)
- Programmable with built-in Wifi with web-based programming, no app needed.
Differences Between Altion and Altion Max
- The Altion controls one alternator and one battery, providing seamless power management.

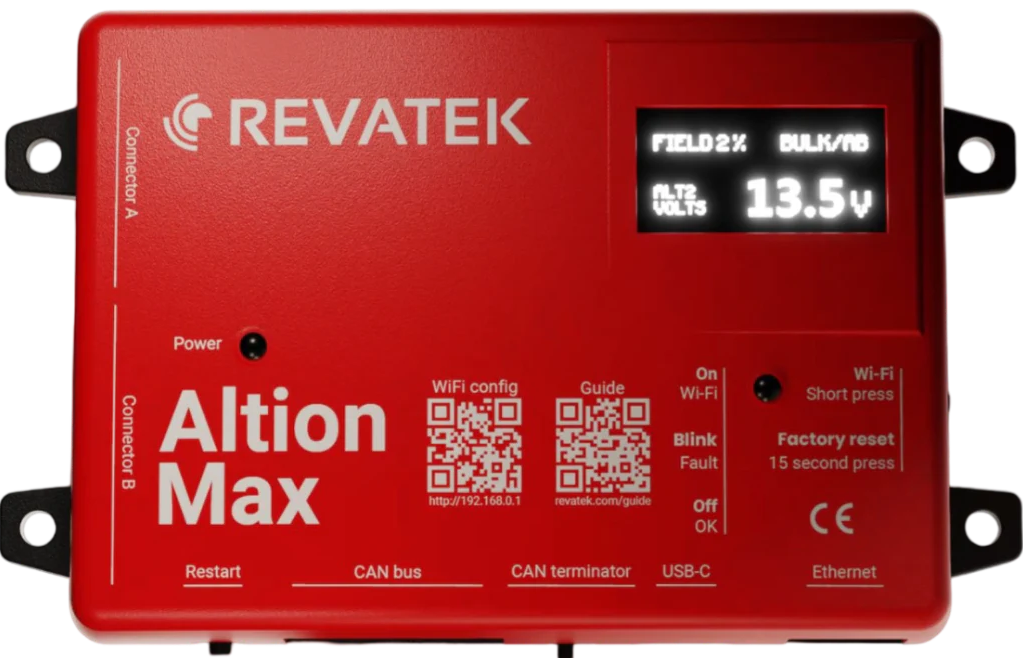

- The Altion Max offers advanced control for up to two alternators and two batteries (of differing voltages!). It also features a built-in screen to monitor system status, including state of charge, charge stage, voltage and more.
We provide complete alternator regulator programming services for the Wakespeed 500, Revatek Altion, Balmar Max-Charge, and the Mastervolt AlphaPro 3
Balmar
Balmar Max Charge: MC618 & MC624
- NEW: The MC618 can now be programmed via Bluetooth using the Balmar app in conjunction with the SG205
- 9 Selectable Programs for Marine Batteries (including LiFePO4)
- 15 Amp (10A for MC624) Maximum Field Current
- Advanced Programming Modes (accessible through Bluetooth)
- Alternator & Battery Temperature Sensing & Control
- Exclusive Belt Load Manager Function
- Integrates with SG200 for Programming and Data Display
- Can be Used in Twin-Engine Applications with Centerfielder II
Mastervolt
Alpha Pro III
- Balances engine load, reducing RPM variations.
- Compatible with standard and high performance alternators, including 200 A ~ 400 A models.
- Integrated ‘keep alive’ feature for reliable tachometer readings.
- Suitable for every battery type, including Lithium Ion.
- Suitable for 12 V and 24 V system voltages.
- MasterBus compatible: simplifies wiring, saves space and weight, and creates optimal cooperation between Mastervolt products
Ready to Design or Purchase Your System?
Get in touch for purchasing or questions.
